Power, Precision, Control - the new Invertek Optidrive size 8 range

Size 8 - Up to 250kW / 400HP 380 – 480V

Now available in Optidrive P2 and Optidrive Eco ranges, combining the innovative features of these products with the ability to control motors rated up to 480 Amps.

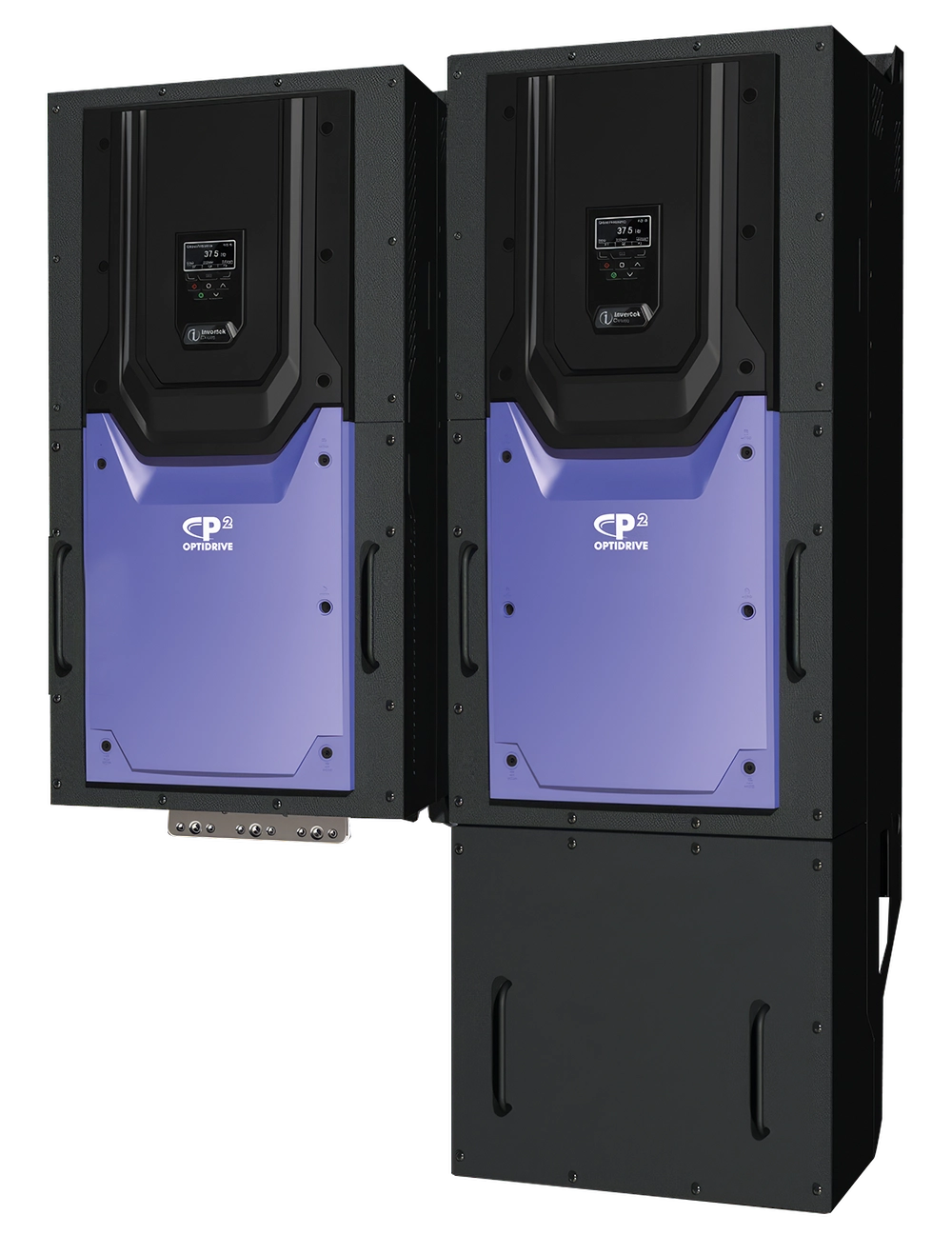

High Power Drive Module

Optidrive Frame Size 8 extends the power rating capacity of Optidrive P2 and Optidrive Eco products up to 250kW / 400HP.
Combining all the features of the standard products, and providing the ability to control motors with rated current up to 480Amps, Frame Size 8 is available in an IP20 enclosure suitable for control cabinet mounting.
Frame Size 8 comes with a built in EMC Filter to meet Category C3 with an option to upgrade to a High Performance EMC Filter that meets Category C2. The drive also has a built in choke as standard.
A new IP55 enclosure is also available and is designed for direct plant/control room mounting.

IP20 & IP55 P2 now in stock for immediate delivery

Features

Unique DC link design with built in choke
Reduces harmonic distortion for a cleaner power supply
Capacitors do not require reforming if drive is placed in storage
Built in brake transistor eliminates the need to add additional external options
Built in multi language text display for easy programming and diagnostics
Connect easily to Optitools Studio
Wide range of communication options for system integration
